The production program of the TAJMAC-ZPS is composed of high-performance machining centres, Swiss-type Lathes and multispindle automatic machines. All these machines found their usage in the most demanding industrial branches on all markets of the world and gained a very good reputation for their high-level technical parameters, accuracy and reliability.
The vertical machining centres are high-performance machines intended for complex chip machining. They are suitable for tool shops, for power machining and when equipped with a pallet changer, they also find their employment in the automotive industry. The work table, whose upper surface serves for workpiece clamping, is traveling in the longitudinal direction (X-axis) along guide-ways of the cross saddle. The cross saddle is moving along guide-ways of the base in the transverse direction (Y-axis). The spindle head moves in the vertical direction (Z-axis) along the guide-ways of the column. All guide-ways are formed by linear guides with rollers. Optionally, it is possible to equip the machines with the 4th of 5th CNC axis and with a wide range of other technological optional equipment.
The horizontal milling centres are equipped with a pallet changer with two pallets and a tool changer with automatic tool change function. The machines are intended for productive and complex machining of moulds, dies and workpieces of a flat or box shape made of steel, cast iron and light metal alloys clamped on the work table. They are suitable for mass production. They enable milling operations in three mutually perpendicular coordinate axes X, Y and Z. The rotary table (B-axis) enables machining from several sides.
The gantry-type machining centres are highly productive machines with wide range of application when machining complicated spatial shapes in three or five axes. Due to high dynamics, very high rigidity and damping characteristics of the machine structure, they enable utilization of HSC technologies advantages. The gantry-type machines have their spindle mounted in a motor spindle unit built-in in the sliding ram. All movements of the machine are realized by linear guide-ways with rollers. Measuring of position in the X, Y and Z axes is carried out directly by absolute measuring units.
The multipurpose machining centres of upper gantry-type enable complex machining of spatially complicated and technologically demanding workpieces as well as of combined shapes, both within five-axis milling operations and full-featured turning operations. The find their use not only in the branches of classical engineering but also in the automotive, plastics and pressing industry. Thanks to their ability to machine in up to six axes with simultaneous possibility of turning, they find their use in demanding areas of engineering and aviation.
Mechanical machines of AC series
Traditional concept of cam-controlled turning lathes for large-lot and mass production. The basic configuration is with 6 or 8 spindles, with controlled motors of spindle drives and feeds.
Numerically controlled machines of TMZ series
Fully CNC controlled machines in 5, 6 and 8 spindles configuration. Suitable for serial production of technologically highly demanding workpieces.
We introduce a highly productive Swiss-type Lathes for manufacturing of round bars up to diameter of 32 mm (36 mm) as well as square and hexagon bars. These automatic lathes with sliding headstock expanded the production program of TAJMAC-ZPS a. s. after MANURHIN K’MX acquisition in 2004 and transfer of production from French Mulhouse into the city of Zlín.
.png)
The machine is no longer just iron that produces more iron. Machine control systems are becoming more sophisticated and allow us to work with them in more depth.
That is why we at TAJMAC-ZPS, a.s., also focus on digital solutions that will allow us to work better with machines, check their conditions and digitally improve their properties. These are mainly products in the ReCON product line, namely:
TAJMAC-ZPS, Inc. also focuses on the development and production of modern machinery and its automation.
The main goal of this industry sector is to achieve greater efficiency and optimization in the production process. One of our key tools to achieve this goal is our innovative ReCON OPC UA platform.
The indisputable advantage of automation is the reduction of human error and dependence on manual processes. As a result, we are able to achieve higher production quality and optimize resource utilization.
An illustrative example of this technology is the Production Cell 4.0, which is able to reduce the cost of preparation time through its operation, thus enabling us to produce small-scale production at the price of large-scale production.
The ZPS MCV1060i vertical machining centre covers the whole scale of technologies from the power up to the high-speed machining.
The ZPS MCV1260i vertical machining centre is a highly productive machine for the complex chip machining in the X, Y, Z axes.
The ZPS MCV1680i vertical machining centre is a highly productive machine for the complex chip machining.
The ZPS MCV2080i vertical machining centre is a highly productive machine for the complex chip machining.
The ZPS MCH630i is a horizontal milling centre equipped with pallet changer with two pallets and with tool magazine with automatic tool changing.
The ZPS MCH800i production horizontal machining centre is utilizable for the whole range of technologies from the power up to the high-speed machining.
The ZPS MCH1000i production horizontal machining centre is utilizable for the whole range of technologies from the power up to the high-speed machining
ZPS MCG810i is a highly productive machine with a wide range of utilization when machining complicated spatial shapes in three or five axes.
ZPS MCG820i is a vertical milling centre of upper gantry type with two separate removable tables or one fixed and one rotary table in a common or divided working space.
The ZPS MCG1000i machine is a multifunctional machining centre of upper gantry-type designed for complex machining of spatially complicated and technologically demanding workpieces as well as of combined shapes, both within five-axis milling operations and full-featured turning operations.
The ZPS MCG2318i gantry-type machining centre is, thanks to its parameters, predetermined not only for machining of spatial workpieces of complicated shapes in the branches of classical engineering but also in the automotive, plastics and pressing industry. It enables machining up to six axes.
The ZPS MCG3022i gantry-type machining centre is, thanks to its parameters, predetermined not only for machining of spatial workpieces of complicated shapes in the branches of classical engineering but also in the automotive, plastics and pressing industry. It enables machining up to six axes with simultaneous possibility of turning.
ZPS MCG810i is a highly productive machine with a wide range of utilization when machining complicated spatial shapes in three or five axes.
ZPS MCG820i is a vertical milling centre of upper gantry type with two separate removable tables or one fixed and one rotary table in a common or divided working space.
The ZPS MCG1000i machine is a multifunctional machining centre of upper gantry-type designed for complex machining of spatially complicated and technologically demanding workpieces as well as of combined shapes, both within five-axis milling operations and full-featured turning operations.
The ZPS MCG2318i gantry-type machining centre is, thanks to its parameters, predetermined not only for machining of spatial workpieces of complicated shapes in the branches of classical engineering but also in the automotive, plastics and pressing industry. It enables machining up to six axes with simultaneous possibility of turning.
The ZPS MCG3022i gantry-type machining centre is, thanks to its parameters, predetermined not only for machining of spatial workpieces of complicated shapes in the branches of classical engineering but also in the automotive, plastics and pressing industry. It enables machining up to six axes with simultaneous possibility of turning.
Basic configuration with 6 transversal, 6 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for spindles stop - the 620SAC configuration, possibility of machining diameters up to 20mm.
Basic configuration with 6 transversal, 6 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for machining of 42 mm maximal diameter - the 642AC configuration, both models can be modified for spindles stop - the 632SAC and 642SAC configuration.
Basic configuration with 6 transversal, 6 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for machining of 67 mm diameters - the 667AC configuration, the 657AC model can be modified for spindles stop - the 657SAC configuration.
Basic configuration with 8 transversal, 8 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for machining of 42 mm maximal diameter - the 842AC configuration, both models can be modified for spindles stop - the 832SAC and 842SAC configuration.
Six-spindle fully CNC-controlled automatic lathe of high accuracy, rigidity and speed. It is designed for mass and serial production of precision components from bar material up to a maximum of ø 20 mm (ø 24 mm).
High productivity is enabled by a total of 21 CNC-controlled axes and another 13 available for special accessories and 6 spindles with a maximum speed of 6,000 rpm. Spindle drum indexing: 0.7 s. The Fanuc i30-B plus control system and two operator panels ensure comfortable and friendly machine operation.
Basic configuration with 5 cross saddles, TM configuration – up to 24 controlled axes and synchronous speeds of spindles, TMZ configuration – up to 30 controlled axes and independent speeds of the spindles, integrated automatic bar magazine, control system and motors: Fanuc.
Basic configuration with 5 cross saddles, 6 longitudinal saddles and 1 parting-off slide, up to 44 numerically controlled axes, independent speeds of the spindles, Siemens Sinumerik 840D sl control system, SINAMICS S120 motors.
Basic configuration with 7 cross saddles, 8 longitudinal saddles and 1 parting-off slide, up to 56 numerically controlled axes, independent speeds of the spindles, Siemens Sinumerik 840D sl control system, SINAMICS S120 motors.
Basic configuration with 7 cross saddles, 8 longitudinal saddles and 1 parting-off slide, up to 62 numerically controlled axes, independent speeds of the spindles, Siemens Sinumerik 840D sl control system, SINAMICS S120 motors.
THE MANURHIN K’MX 413 is designed for productive machining of parts for bars with a maximum diameter of 13 m or 16mm
THE MANURHIN K’MX 432 is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)
MANURHIN K'MX 520 is designed for productive machining of parts made of bars with a maximum diameter of 20 mm.
THE MANURHIN K’MX 532 TREND is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)
MANURHIN K'MX 620 is designed for productive machining of parts made of bars with a maximum diameter of 20 mm.
THE MANURHIN K’MX 632 DUO is designed for productive machining of parts for bars with a maximum diameter of 32 mm or 36 mm (adjustment of bar end is needed)
THE MANURHIN K’MX 732 EVO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)
THE MANURHIN K’MX 816 CLEVER is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.
THE MANURHIN K’MX 1032 is delivered in two versions –one for bars Ø 32 and one for bars Ø 36 mm (bar preparation is needed).

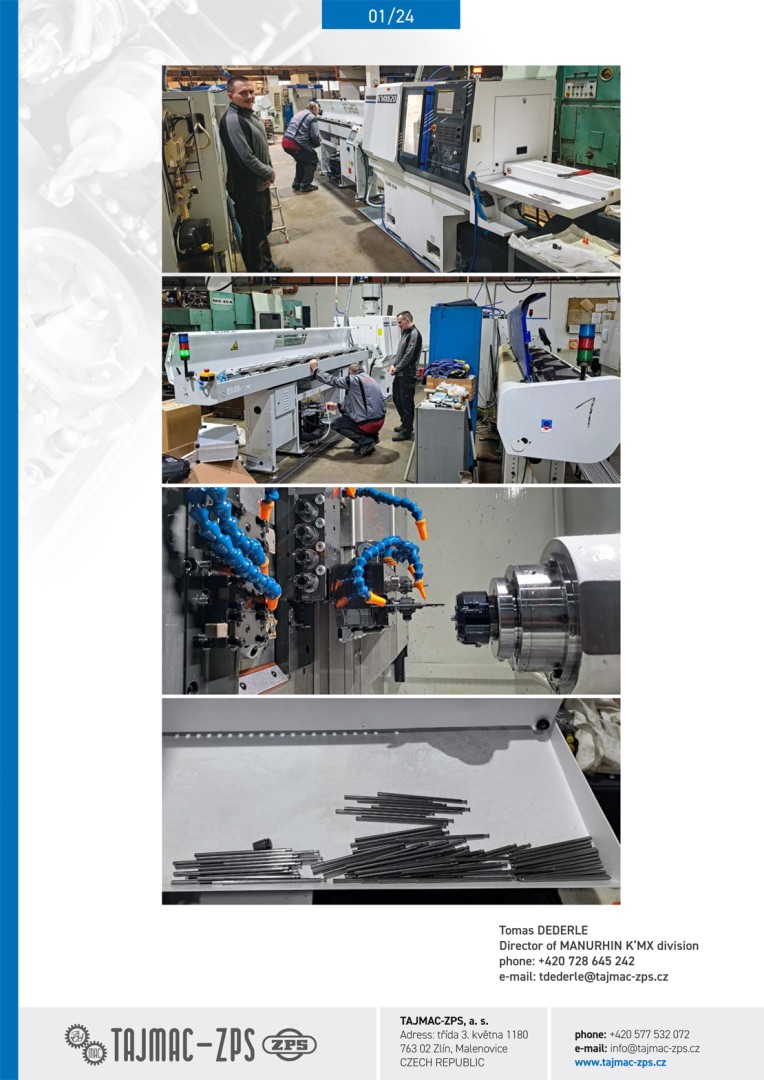

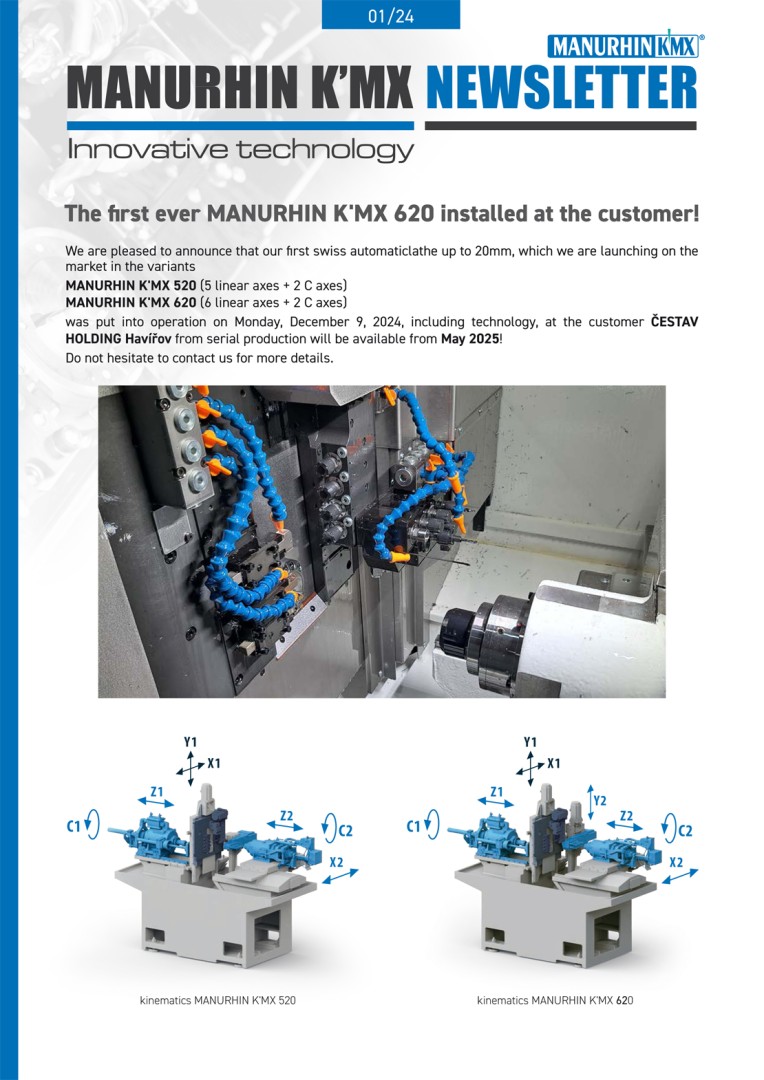

We are pleased to announce that our first swiss automaticlathe up to 20 mm, which we are launching on the market in the variants
MANURHIN K'MX 520 (5 linear axes + 2 C axes)
MANURHIN K'MX 620 (6 linear axes + 2 C axes)
was put into operation on Monday, December 9, 2024, including technology, at the customer CESTAV HOLDING Havírov from serial production will be available from May 2025!
